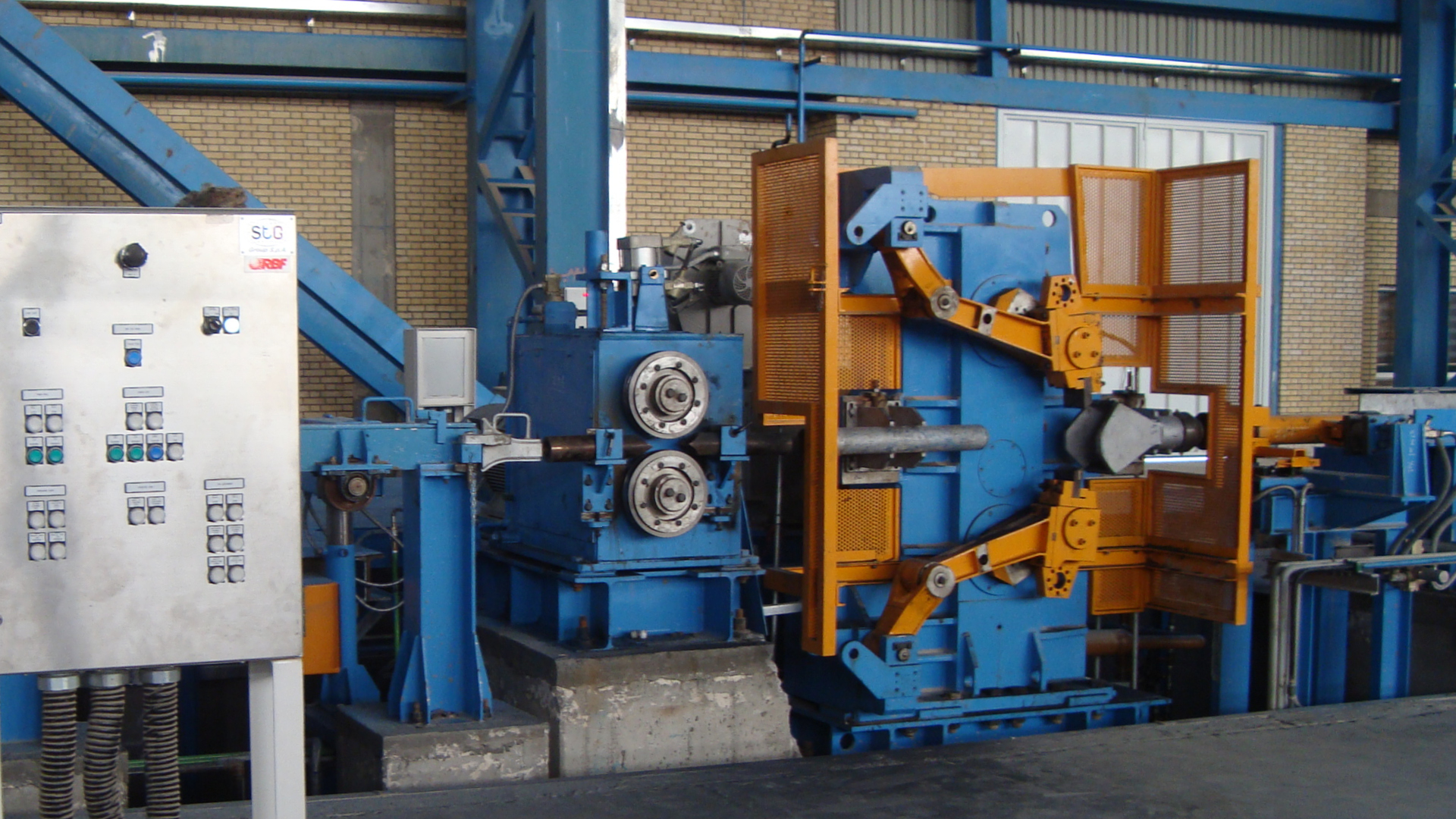

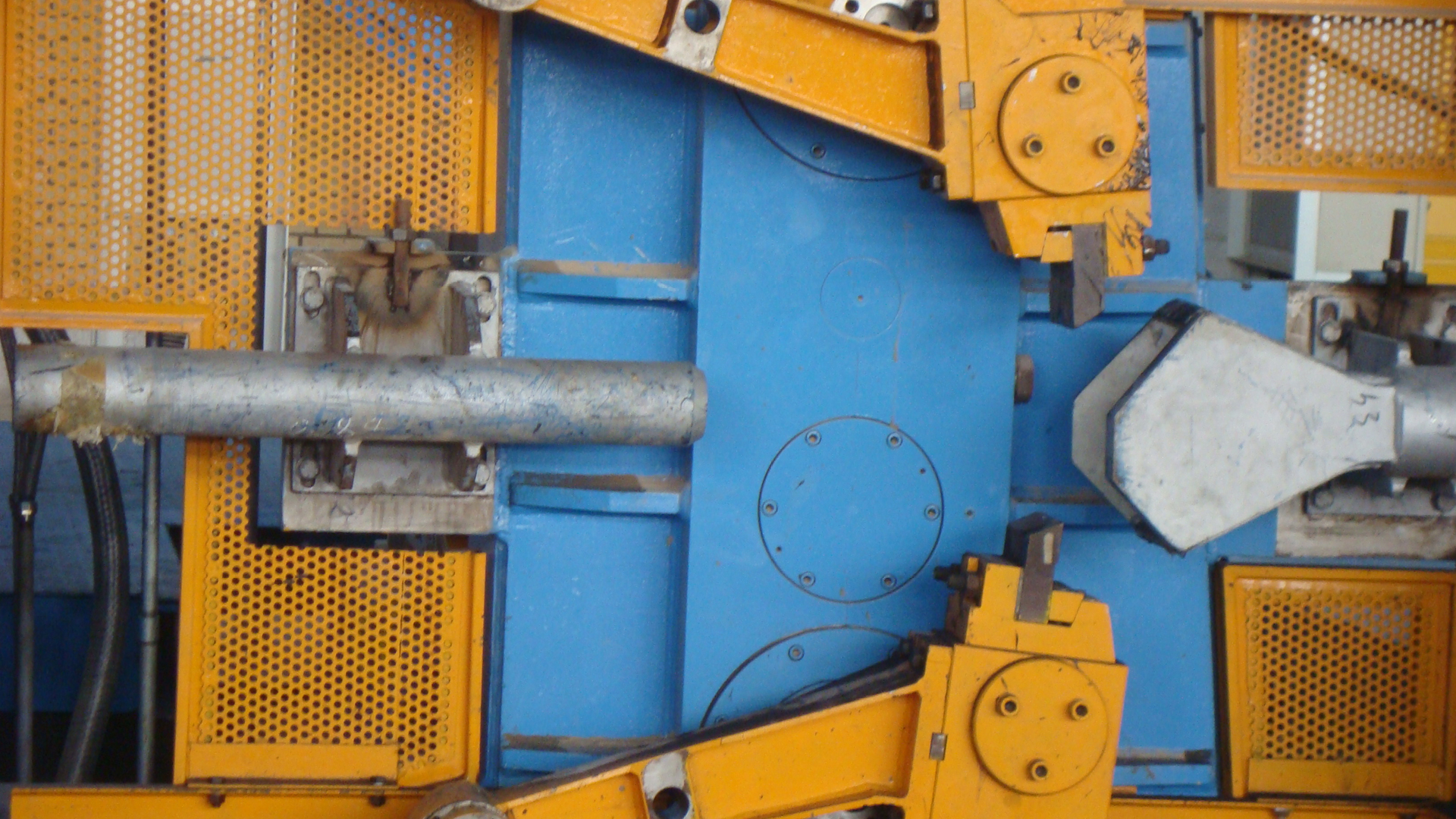

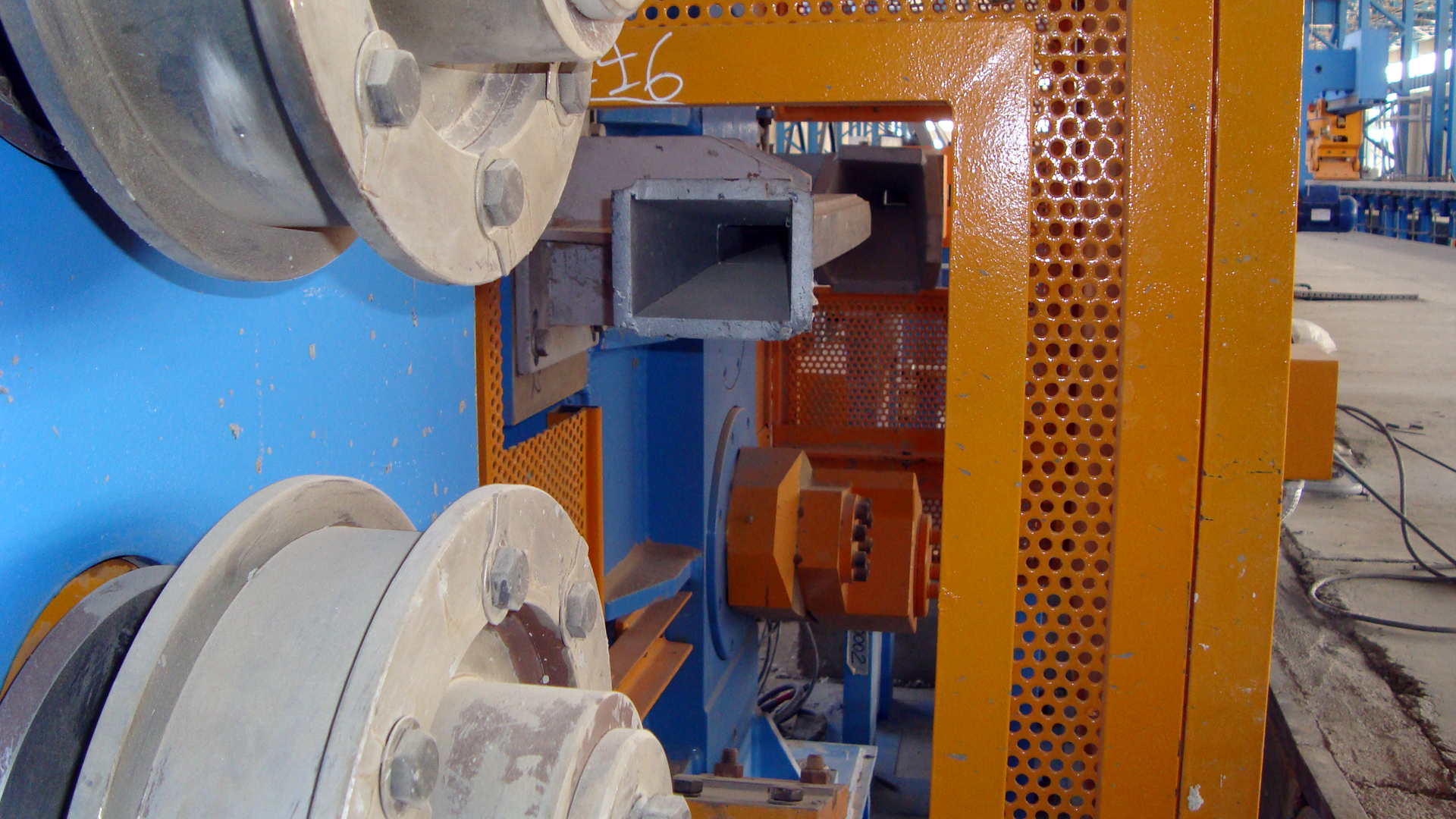

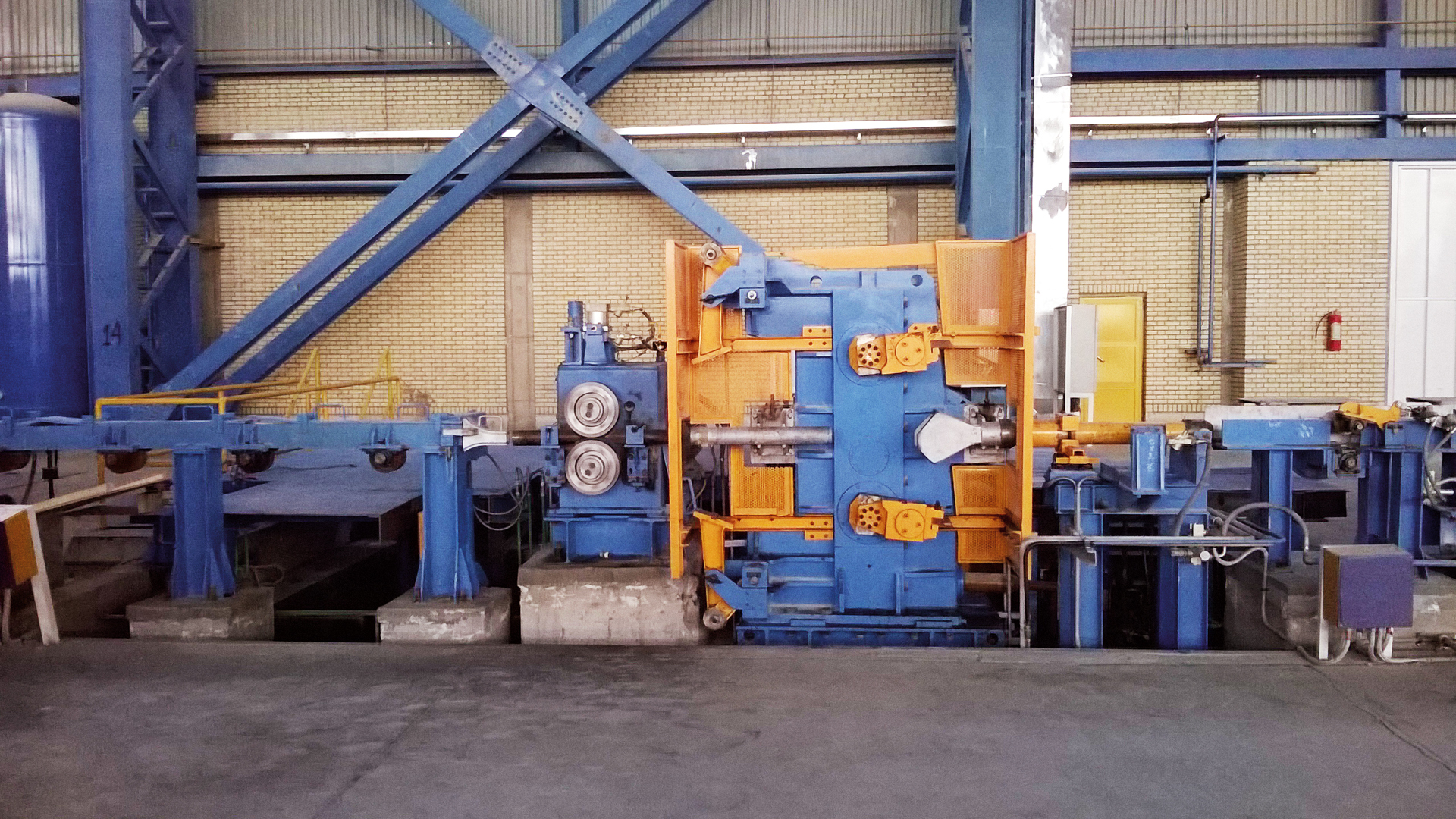

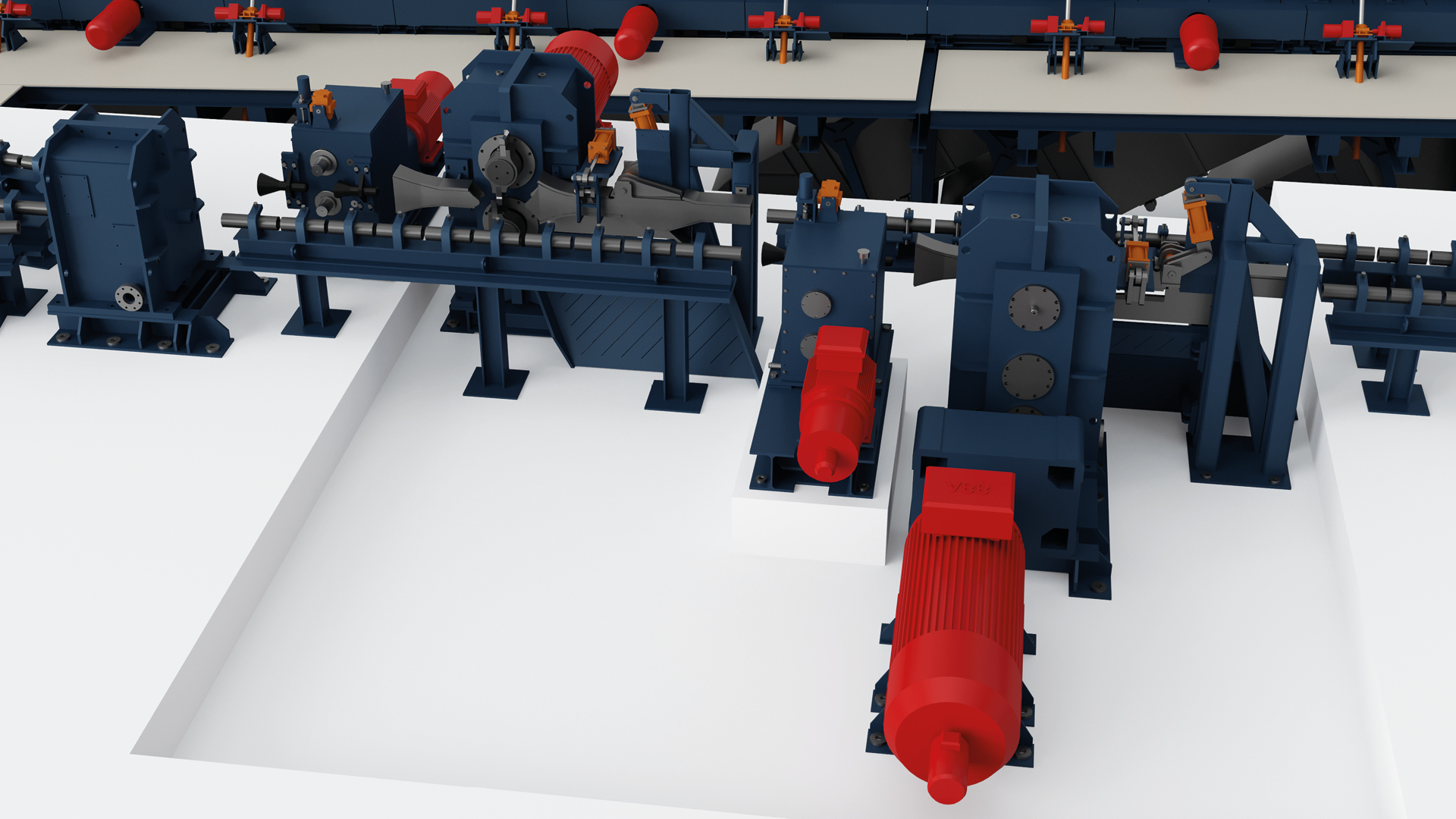

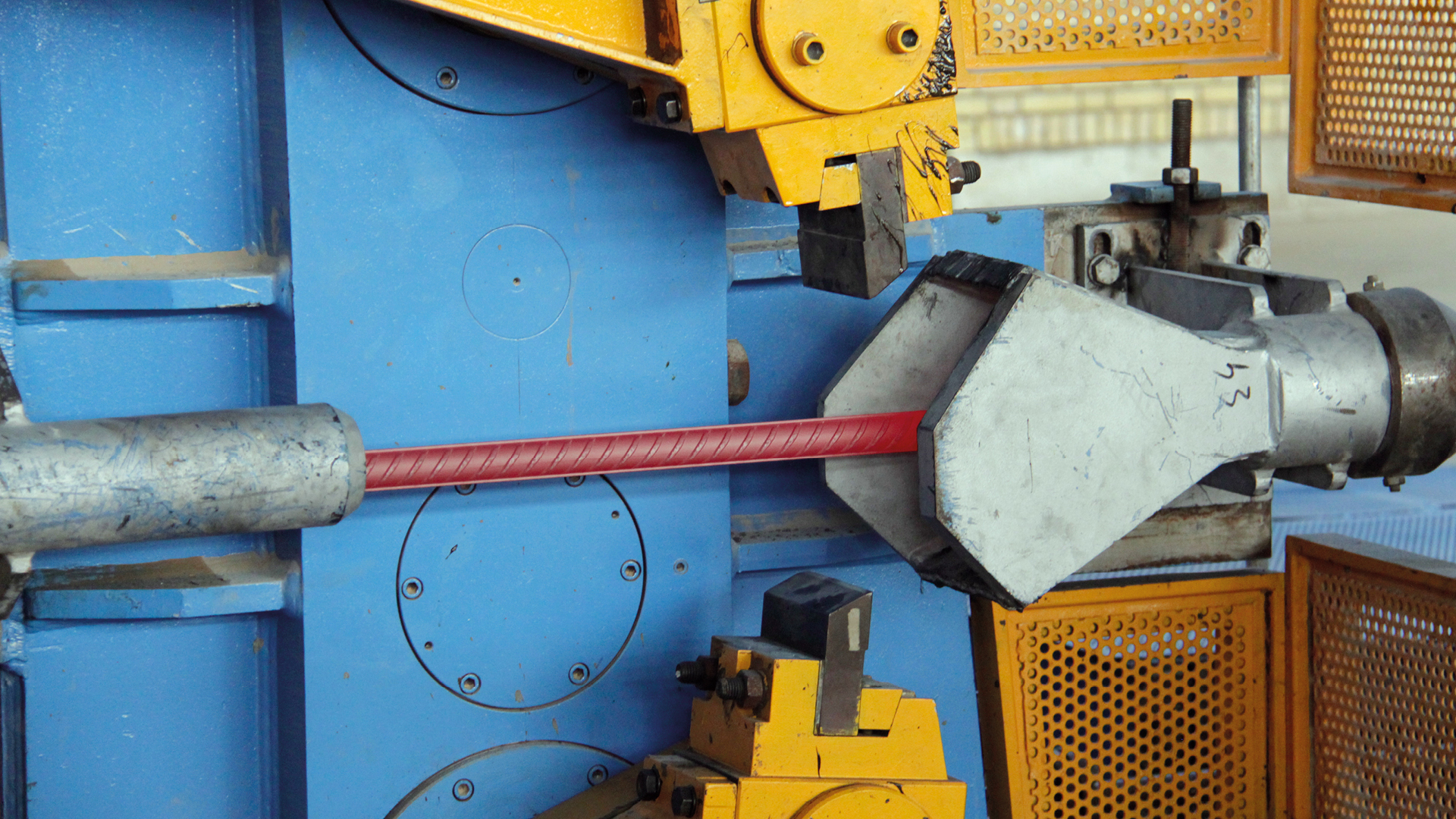

FLYING DIVIDING SHEAR
Metech STG shears are designed to work as start-stop equipment:
- Shorter crop length to increase the material yield
- Steady accuracy for each cut
- Fast reaction of automatic control in case of cobble
- Simple construction, less maintenance and spare parts
- Reduced environmental impact (no emission of dust due to friction elements, lower noise level)
| SHEAR SIZE | MAX CUTTING FORCE | TYPE | KNIVES CENTERLINE | SPEED RANGE * |
|---|---|---|---|---|
| CSS05P | 50 ton | CRANK | 928 mm | Min 0.5 –Max 6 m/sec |
| SS05PR | 40 ton | CRANK | 928 mm | Min 1.5 – Max 14 m/sec |
| 40 ton | ROTARY | 928 mm | Min 1.5 – Max 14 m/sec | |
| SS05P | 40 ton | CRANK | 928 mm | Min 1.5 – Max 6 m/sec |
| SS1PR | 30 ton | CRANK | 928 mm | Min 1.5 – Max 14 m/sec |
| 30 ton | ROTARY | 928 mm | Min 1.5 – Max 14 m/sec | |
| SS1R | 20 ton | ROTARY | 928 mm | Min 1.5 – Max 14 m/sec |
| SS2R | 15 ton | ROTARY | 1100 mm | Min 3 – Max 20 m/sec |
| SS3R | 10 ton | ROTARY | 1300 mm | Min 3 – Max 30 m/sec |
