SPECIAL STEEL ROLLING MILL
Metech STG expert evaluation of rolling mill arrangement allows our engineering department to provide technical advice and support, both on mill revamping issues and on new rolling mill projects in view of particular production needs and customer exigencies.
Our process engineers conceive special steel rolling mills with hot or cold charging.
After the Rolling Stand Mill area, rounds for machining and springs and spring flats are directly conveyed to the cooling bed and subsequently to the finishing area.
As far as wire rod and big rounds in coil are concerned, the rolled stock is conveyed to different production lines. In the Wire Rod Line the product undergoes water cooling before and after both the Finishing and the Sizing Block, reaching the finishing area through a controlled cooling conveyor. In the Big Rounds in Coils Line the rolled stock is water cooled before and after the Sizing Block, it enters the Garret coilers and reaches the finishing area on a controlled cooled conveyor.
Product range
WIRE ROD from 5.5 to 16 mm

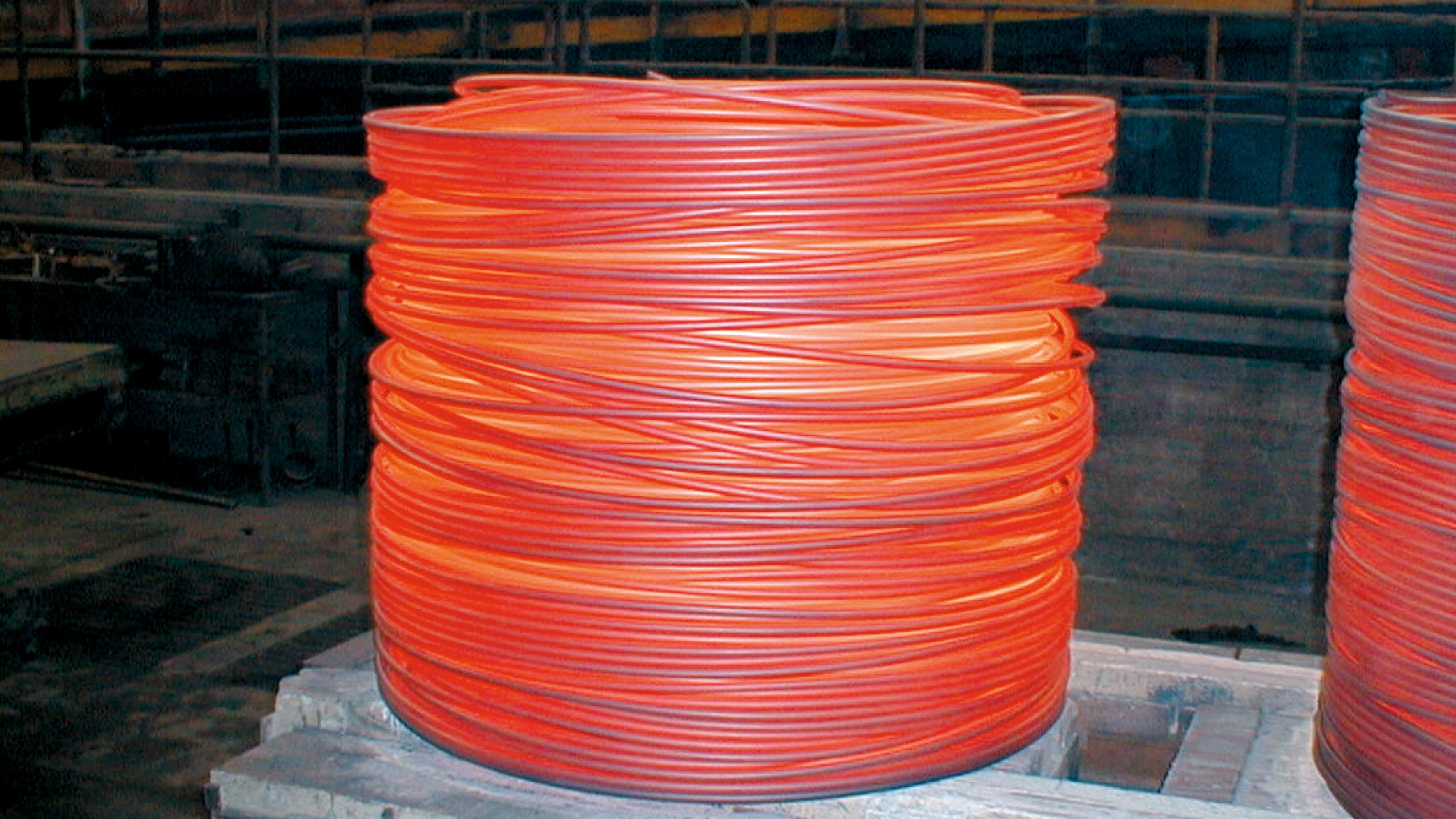

BIG ROUND IN COIL from 18 to 50 mm

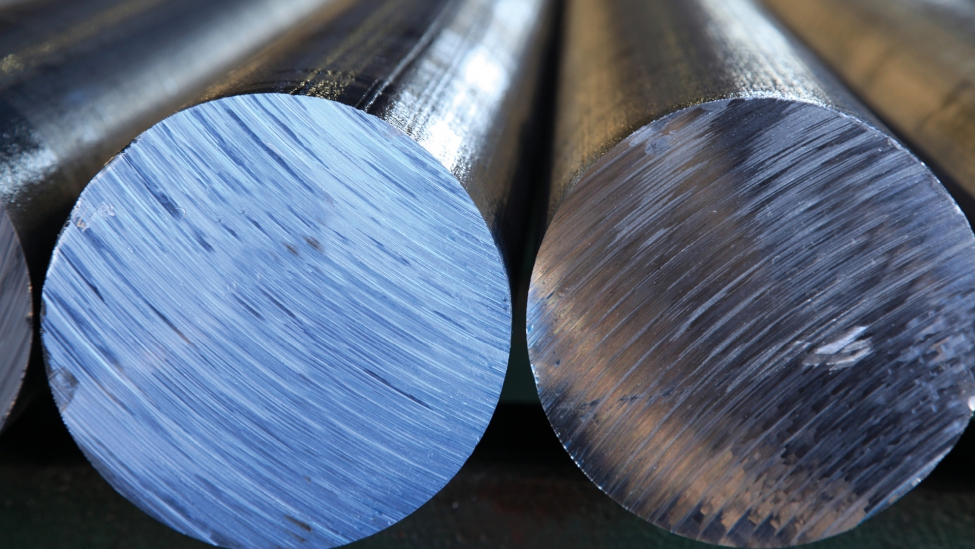

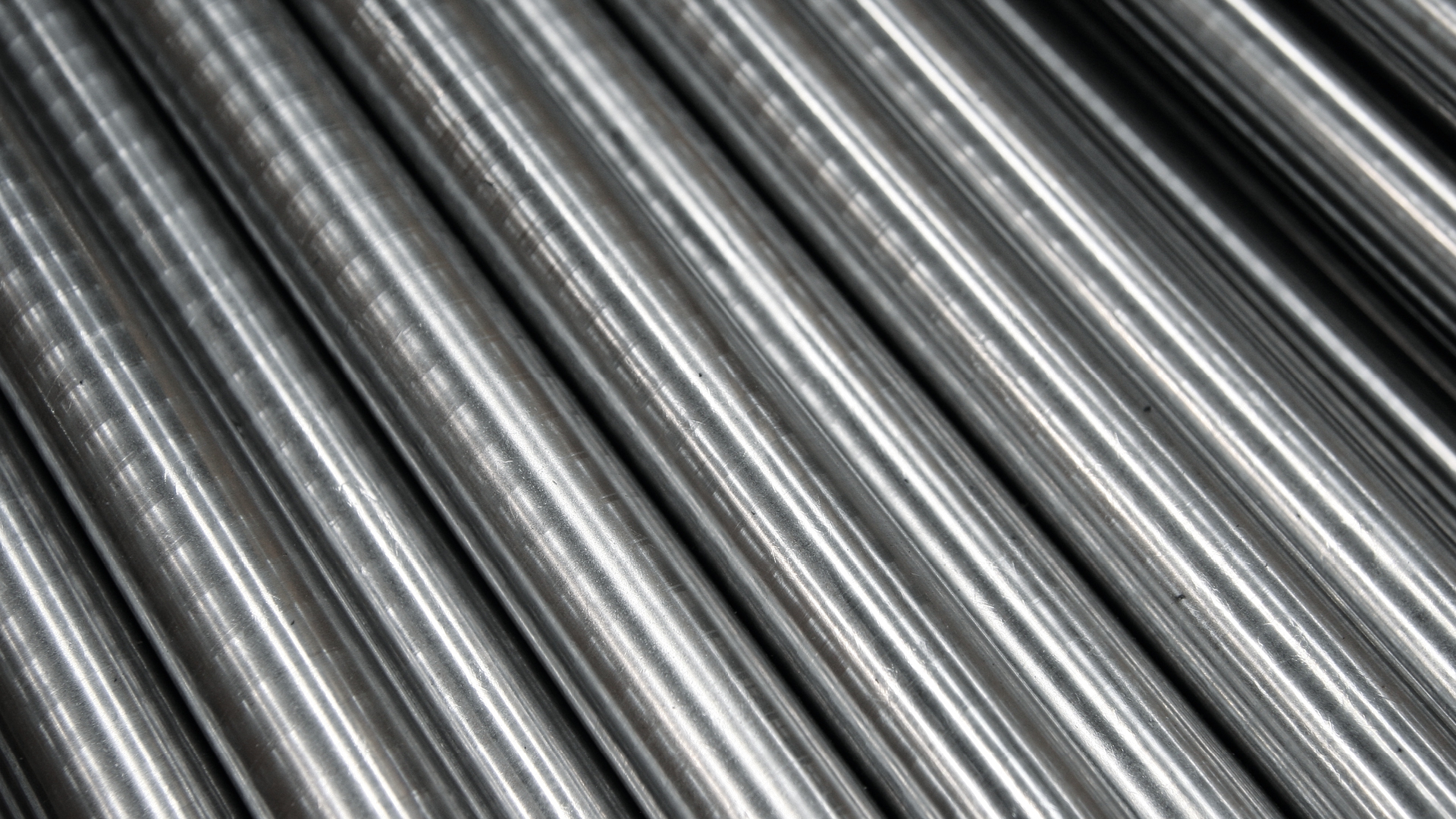

ROUNDS FOR MACHINING AND SPRINGS from 18 to 60 mm
SPRING FLATS from 50x4 to 120x40 mm
STARTING MATERIAL ROUND BLOOMS up to 350 mm
1. Hot/Cold Charge

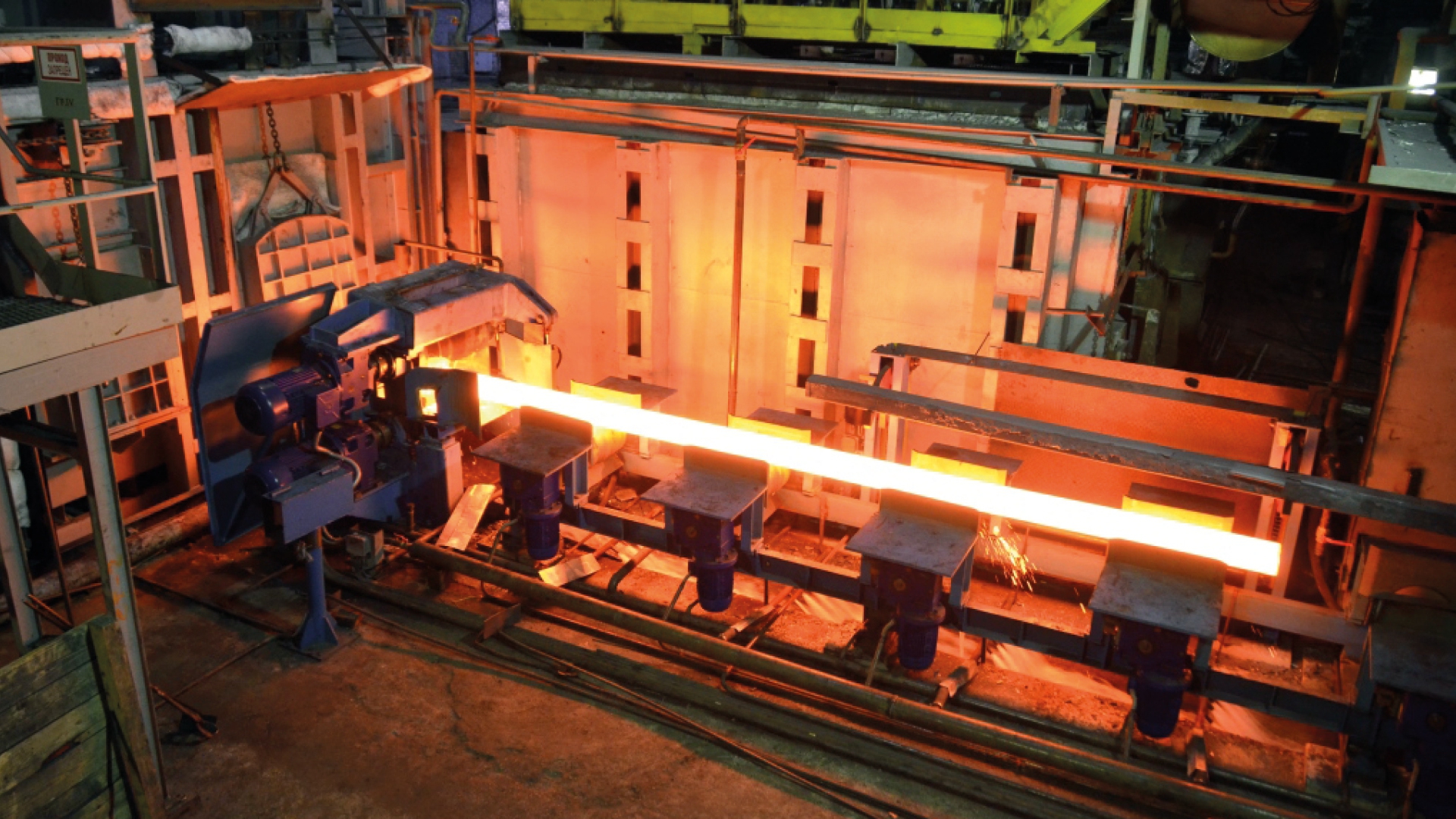

2. Walking Beam Reheating Furnace
3. Descaler
4. Pinch Roll
5. Roughing Mill
6. Shear
7. Induction Furnace
8. Intermediate Mill
9. Crop Shear
10. Finishing Mill
11. Water Cooling Control
12. Cooling Bed
13. Disk Saw
14. Bundling Stacking Station
15. Sizing Mill
16. Water Cooling Control
17. Dividing Shear
18. Slow Cooling Boxes
19. Cooling Bed
20. Shear
21. Disk Saw
22. Bundling Station
23. Tying Machine
24. Collecting Station

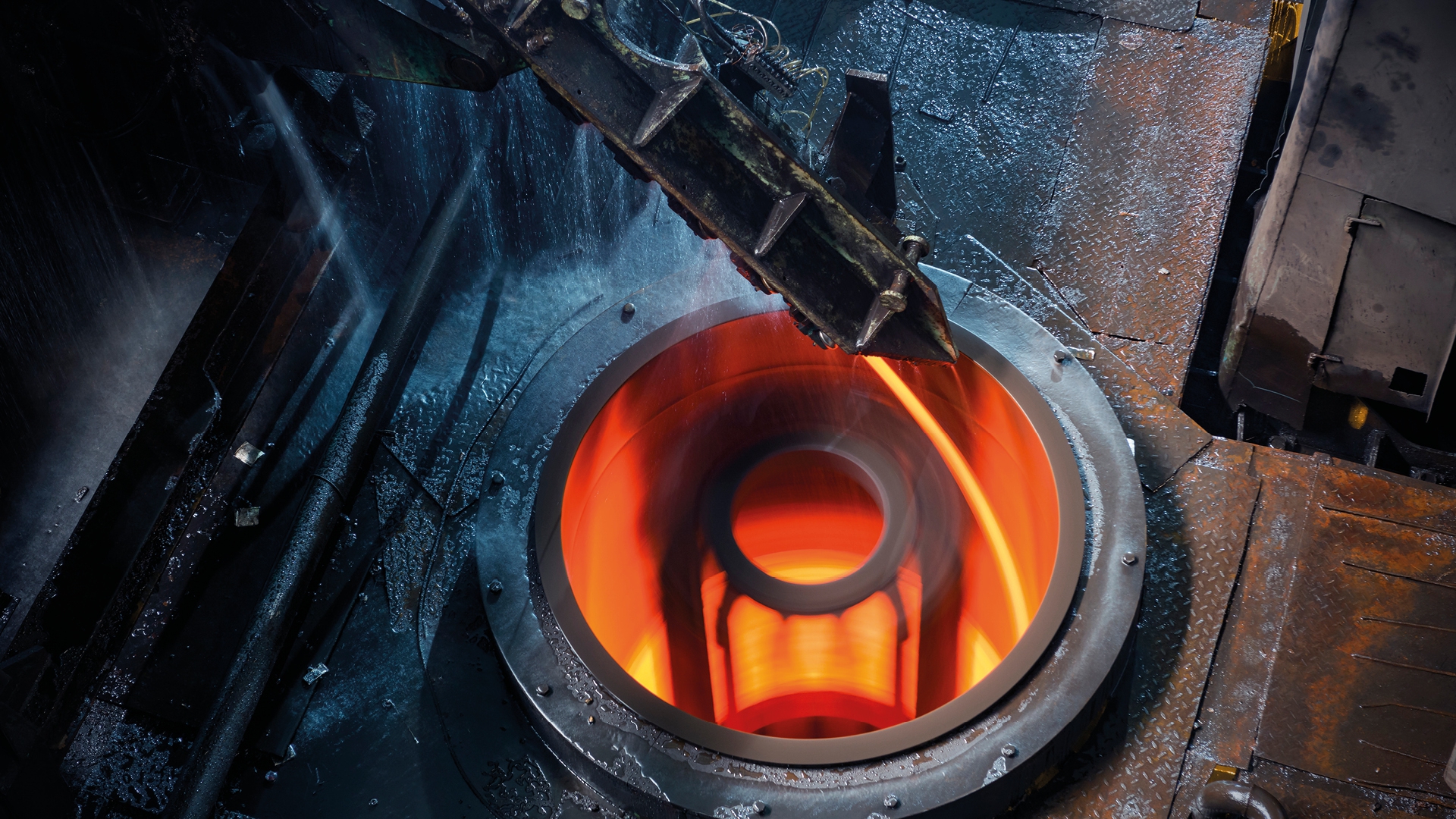

25. Garret Coilers
26. Walking Beam Coil Conv.
27. Power & Free Line
28. Press and Tying Machine
29. Weighing Station
30. Discharging and Collecting Station
31. Crop/Chop Shear
32. High Speed Block
33. Water Cooling Line
34. Laying Head

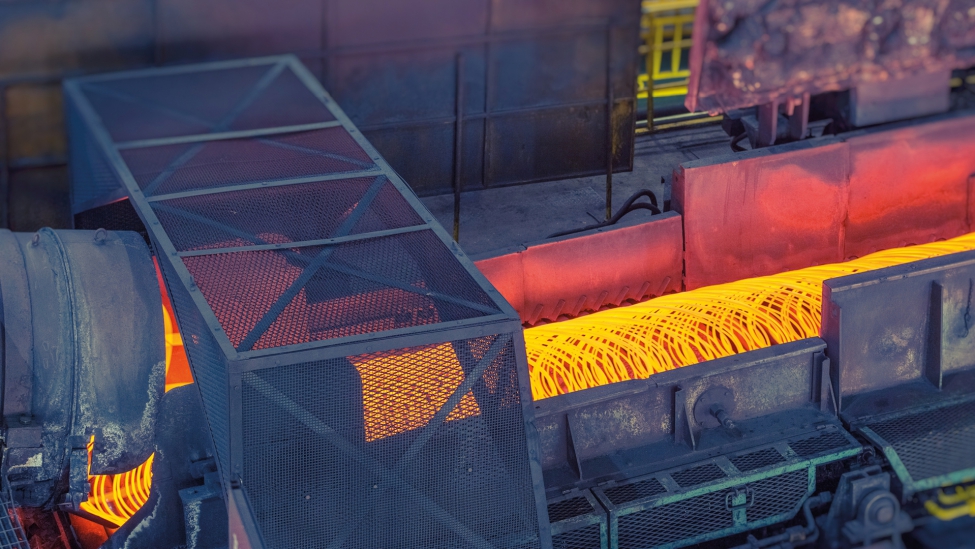

35. Controlled Cooling Conveyor
36. Coil Forming Station
37. Discharging and Collecting Station
